Specification of

  water well drilling rod

1-4.5m length water well drilling rod - drill pipe manufacturers

Description of Wireline Drill Rod:

This wireline drill rod is the equipment that connects the drilling tools and drilling bits, and it is mainly used to transmit power. It mainly consists of a tubing body and two thread ends.



The wireline drill rod features

1.good wear resistance,

2.optimal tensile strength capacity

3.good torsional property.

 1-4.5m length water well drilling rod - drill pipe manufacturers

Packing

Concerning the packing, it is packaged by iron belts.

BQ Bundled Specifications (Steel Belt):

3.0m/10ft BQ Drill Rod (37 Pieces)

Dimensions (L×W×H): 3.0×0.4×0.4

Volume: 0.5 m3

Gross Weight: 670 kg

BQ Bundled Specifications (Iron Frame):

3.0m/10ft BQ Drill Rod (30 Pieces)

Dimensions (L×W×H): 3.0×0.35×0.3

Volume: 0.32 m3

Gross Weight: 550 kg

NQ Bundled Specifications (Steel Belt):

3.0m/10ft NQ Drill Rod (37 Pieces)

Dimensions (L×W×H): 3.0×0.5×0.5

Volume: 0.75 m3

Gross Weight: 900 kg

NQ Bundled Specifications (Iron Frame):

3.0m/10ft NQ Drill Rod (25 Pieces)

Dimensions (L×W×H): 3.0×0.38×0.39

Volume: 0.43 m3

Gross Weight: 610 kg

HQ Bundled Specifications (Steel Belt):

3.0m/10ft HQ Drill Rod (37 Pieces)

Dimensions (L×W×H): 3.0×0.625×0.625

Volume: 1.2 m3

Gross Weight: 1300 kg

HQ Bundled Specifications (Iron Frame):

3.0m/10ft HQ Drill Rod (25 Pieces)

Dimensions (L×W×H): 3.0×0.46×0.47

Volume: 0.65m3

Gross Weight: 890 kg

 1-4.5m length water well drilling rod - drill pipe manufacturers

Technical Parameters

No

Size

Drill rod

Thread type

Heat

Raw material

Designed hole depth

OD mm

ID mm

treatment

1

S56

53

44

Chinastandard

  45MnMoB

1000m

2

S59

55.5

46

Chinastandard

1000m

3

S75

71

61

Chinastandard

1002m

4

S95

89

79

Chinastandard

600m

5

S75A

 Both side were enhanced

61

Factory standard

heat treatment the Thread

45MnMoB

1500m

6

S95A

79

1300m

7

CBH

44

Heat treatment the whole pipe

30CrMnSiA

2500m

8

CNH

61

2300m

9

CNH(T)

61

XJY850

3000m

10

CHH

78

30CrMnSiA

1800m

11

CSH

127

114.3

S135

3000m

12

BQ

55.6

46

DCDMA standard

Heat treatment the whole pipe

ZT850

2000m

13

NQ

70.5

60.5

2000m

14

HQ

89

77.8

1500m

15

PQ

114.3

103.2

ZT520

800m

About us



Our Factory is a leading manufacturer of wireline drill rod in China. Both ISO9001: 2000 and API 5DP certificates are available for our products, and our products have been quite popular among clients from Mongolia, Kazakhstan, Russia, Iran, Afghanistan, Oman, Turkey, Thailand, Vietnam, Myanmar, Malaysia, Indonesia, Singapore, Taiwan, Colombia, Mexico, Brazil, Canada, Australia, etc. Besides, OEM service is also available. If you need C-Q series drill pipe, please contact us freely.

 1-4.5m length water well drilling rod - drill pipe manufacturers

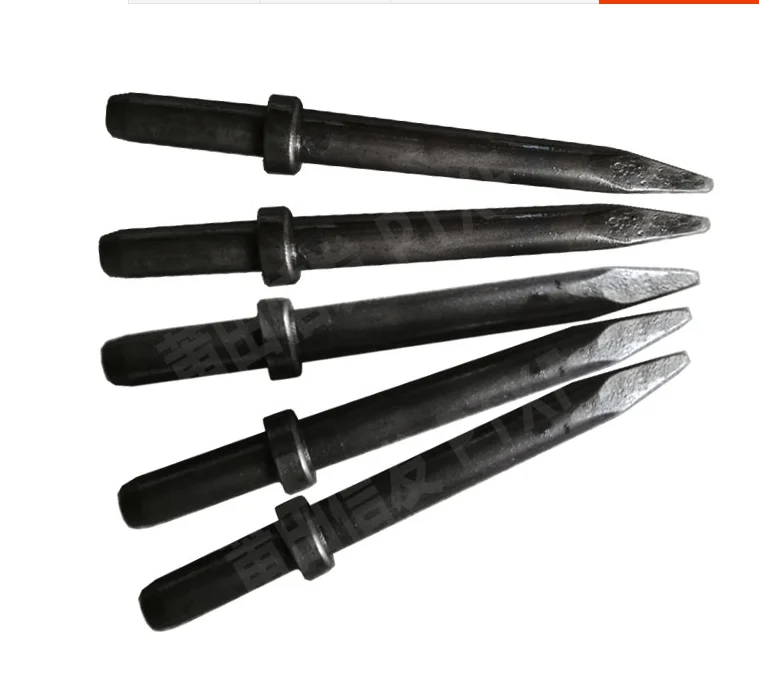

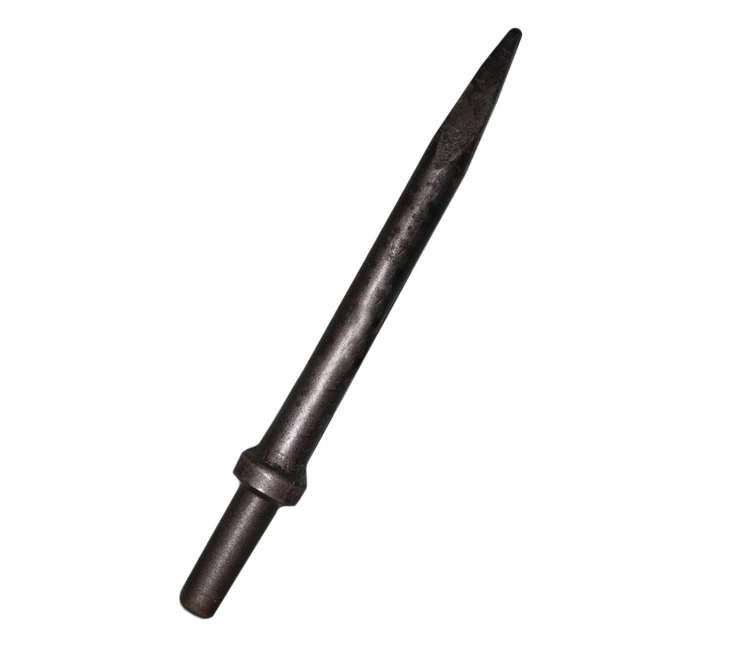

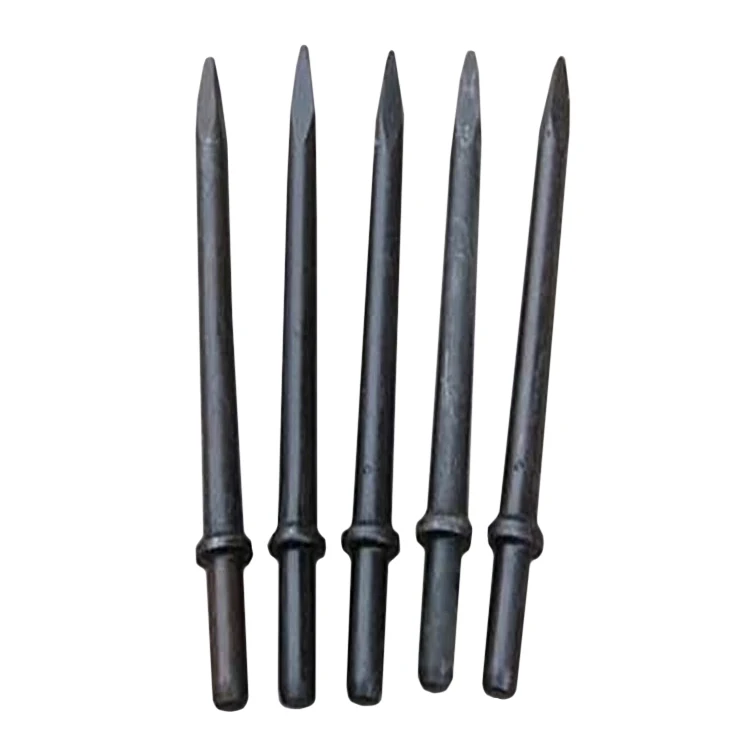

Product Description

BEST PARTNER FOR AIR ROCK!

1. The chisel body is made of 40Cr alloy tool steel, and the whole chisel body is processed by heat treatment;

2. Hardness reached HRC 45-50;

3. It is widely used in pipeline laying, mechanical installation, drainage facilities construction, indoor decoration, port facilities construction and other construction projects.

ATTENTION:This product is consumable and not covered by warranty.

Products Show





Untuk keterangan lebih lanjut, silahkan download PDF ini :
